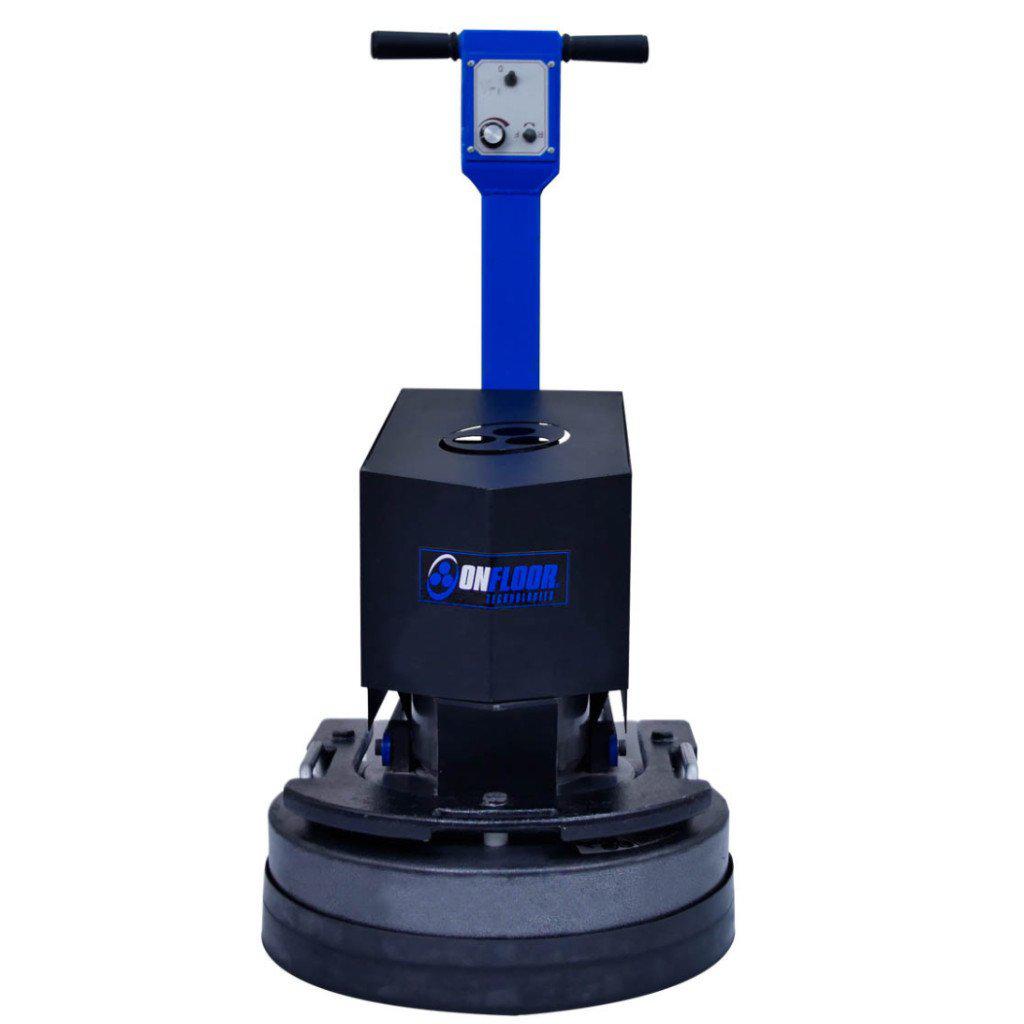

We have one of the best triple-belt planetary technology on the market. If you are looking to get one of these, then this is what you should know. The Onfloor 20Pro is a floor grinder, floor polisher, and wood floor sander that can radically increase your diversity. The 20Pro is a highly efficient machine equipped with Onfloor’s patented triple-belt planetary technology that provides a unique Spirograph pattern on the floor.
The 20Pro is designed for multi-surface applications such as sanding wood, grinding concrete, polishing concrete, and the removal of all types of coatings and adhesives. It’s light enough to sand wood yet heavy enough to grind, polish, and prepare concrete at a high rate of speed.
The 20Pro platform also incorporates Onfloor’s unique and patented tool attachment system. This system provides flexibility for the tools to follow the contour of the substrate and scratch it evenly. Therefore, minimizing the over grinding of high spots while consistently scratching the low spots.
The 20Pro is able to prepare more than 600 square feet per hour of concrete per grit on a single phase 208-240V power. It’s all Fast n’ Easy with Onfloor.
Tooling packages are available for a multitude of applications including:
Concrete Surface Preparation | Epoxy Removal | Mastic/Glue Removal | Wood Floor Sanding/Refinishing | Stone Polishing
Features
- Large 20” Cutting Path: More production in less time.
- Fit Through Standard Door: High production access to smaller floors.
- Heavy-Duty Belt System: Provides continuous operation with minimal downtime.
- Up To 302 lbs. Grinding Pressure: Increases productivity with more grinding pressure.
- Variable Speed Control; Maximizes efficiency by adjusting speed to application requirements.
- Removable Handle: Reduces overall height for mobilization;
- Self-Maintenance Platform: Replace belts and bearings in minutes not hours.
- Wet/Dry Operation: The machine operates dry with a dust collector or wets with water.
- Patented Flexible Tool Plates; Follow the contour of the floor for faster production.
- Patented Triple Belt Planetary: Creates more torque with less power.
Model | OF20Pro |
Motor/Power | 5 HP/208-240V 50/60HZ |
Full Load Amperage | 26 |
Tool Speed | 0-1750 RPM Variable |
Cutting Width | 20" |
Vacuum Port | 1.5" or 2" |
Minimum CFM | 180 |
Weight | 210 LBS |
Grinding Pressure | 190 LBS |
Optional Weight | 28 LBS (4 max) |
Shipping Dimension | L: 30" x W:24" x H: 42" |
Shipping Weight | 230 LBS |
- OF20 KEVLAR BELTS 210L 3/SET (ORIGINAL)
- OF20 KEVLAR BELTS 640 3/SET (HEAVY DUTY)
- GROMMET WHITE 24/SET
- OF20 DUST SKIRT
- ACCESSORY PINS 12/SET
- TOGGLE ON/OFF SWITCH
- BEARING, PULLEY, TRIPLE LIP SEAL, 1.57" OD x .47" ID
- SMALL BEARING SPACER
- BEARING, BOWL, TRIPLE LIP SEAL, 6009-2RS
- SPACER, BOWL BEARING
- 28lb WEIGHT FOR OF20
- HI 61 TOOTH PULLEY CLOSEST TO THE DUST COVER (HEAVY DUTY)
- MID 61 TOOTH PULLEY (HEAVY DUTY)
- LOW 61 TOOTH PULLEY CLOSEST TO THE INNER BOWL (HEAVY DUTY)
- CENTER 22 TOOTH PULLEY (HEAVY DUTY)
